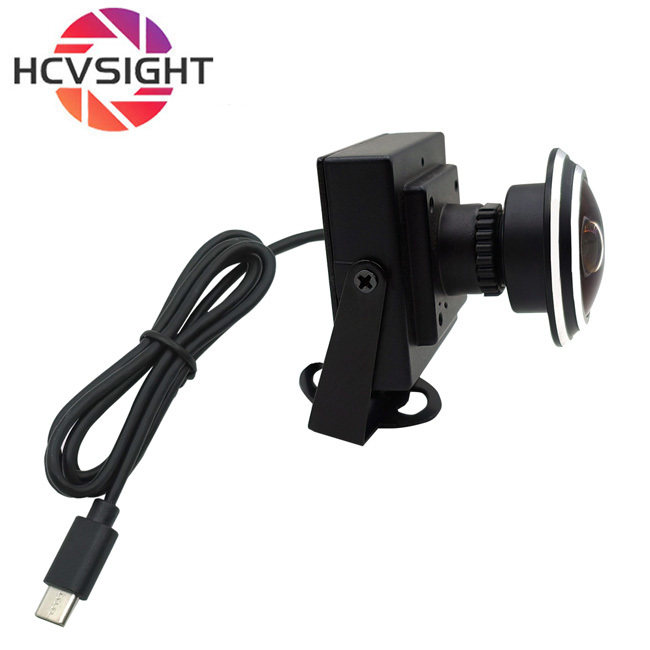

    Mini Wide-angle Fisheye Lens 2MP HD 1080p Self-service Terminal USB Camera

    Ask Lasest Price
    Brand Name : HCVsight
    Model Number : HCU-FKMY362
    Price : negotiable
    Payment Terms : ,T/T
    Supply Ability : 100000/pieces/mouth
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    Mini Wide-angle Fisheye Lens 2MP HD 1080p Self-service Terminal USB Camera


    Mini Wide-angle Fisheye Lens 2MP HD 1080p Self-service Terminal USB Camera

    Product Description:

    This camera has a large wide-angle feature, with an optical FOV (D) of up to 175 °, providing an extremely wide field of view and effectively reducing monitoring blind spots. The fisheye lens design endows it with a unique imaging effect, capturing the surrounding scene from all angles to ensure that important details are not missed. In terms of industrial equipment, it can be applied to various complex environments, such as production line monitoring, equipment status monitoring, etc. With its broad and unique perspective, it can help operators fully grasp the operation of equipment, timely discover potential problems, and improve production efficiency and safety.

    Technical Parameters: Big Fish Eye Lens Specification Book.pdf

    Sensor1/2.9"
    Pixel2MP
    Compression formatMJPG/YUV2
    Frame rate1920x1080 30fps
    Audiononsupport
    Frequency operating voltageDC 5v
    Product dimensions36x36mm
    White balanceAutomatic
    Operating temperature<70°
    Power consumption0.25w
    Model NoHCU-FKMY362
    Intenface typetype-c interface
    USB cable lengthDefault 1.2m
    LensEFL:2.1mm
    F.ON:2.4
    EFL:6.3mm
    Element:7G+650IRCUT
    Angle:D=175° H=132° V=96°
    Thread:M12
    Chip TypeCOMS
    Support OSWinXP/Win7/Win8/Win10/Mac OS/Linux/Android

    Product advantages and application scenarios:

    1, Stable signal, years of experience in developing and designing small camera modules, avoiding many signal interference factors.
    2, Good compatibility, USB camera is compatible with various operating systems, Windows systems, Android systems, Mac OS, Linux, etc.
    3, High color reproduction, decades of experience in software engineering department debugging, simulating different environments such as lighting, outdoor sunlight, stairwell darkness, facial recognition, green plants, flames, etc. for camera color debugging. Achieve optimal color reduction.

    4,2.1mm ultra wide angle fisheye lens with a horizontal viewing angle of 132 ° (175 ° diagonal).
    5,Industrial grade structural design: metal block shell (36 × 36mm), four sided heat dissipation fin design.

    Customization: Huachuang Finished Product List.xls

    We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

    1. Lens customization: specific focal length, field of view angle, distortion control.
    2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
    3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
    4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).


    Camera application field


    Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
