Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones

Shenzhen Huachuang Micro Vision Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers

    Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers
    • Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers
    • Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers
    • Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers
    • Buy cheap Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones from wholesalers

    Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones

    Ask Lasest Price
    Brand Name : HCVsight
    Model Number : HCA-C62
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100000/pieces/mouth
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

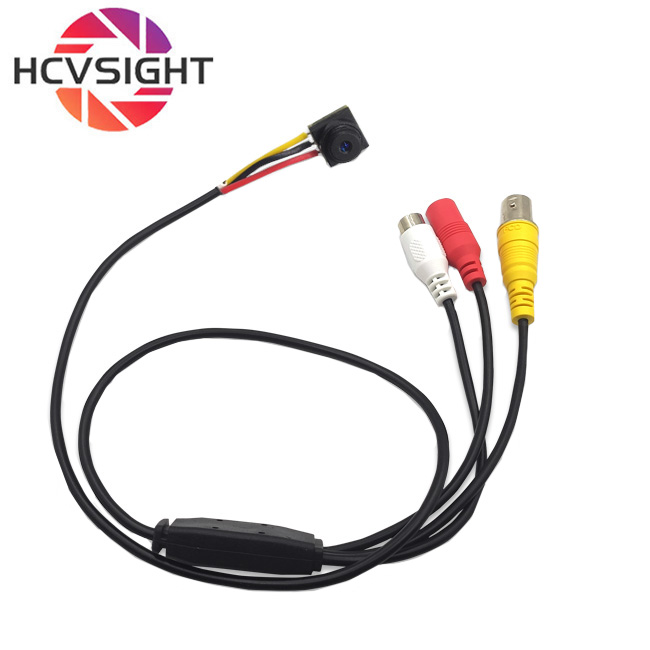

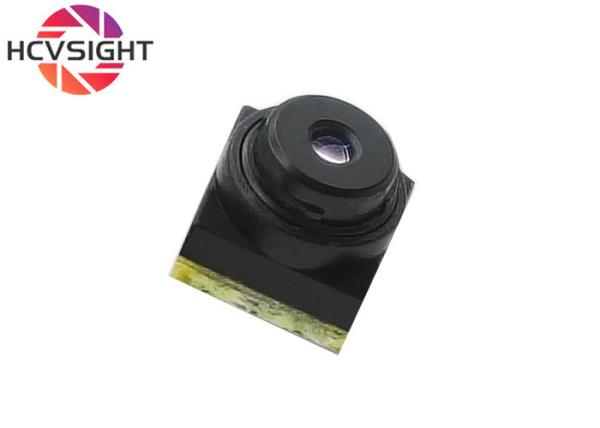

    Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones


    Mini size 6x6mm 2 megapixel AHD Mini CCTV Camera for Industrial Drones

    Product Description:


    This AHD 2 MP HD 6mm small square machine vision surveillance camera is a product specially designed to meet diverse monitoring needs, and has outstanding performance in performance, design and application. The unique small square shape design is small in size and does not occupy space, making it easy to install in various environments, whether it is indoor corners or some narrow spaces outside, it can be easily placed, and the appearance is simple and elegant, and it can be combined with a variety of scenes. Combination of styles.

    Technical Parameters:


    Sensor1/4"
    Pixel2MP
    SignalAHD
    Frame rate1920X1080 25fps
    Audiononsupport
    Frequency operating voltageDC 3.3v
    Product dimensions6mmx6mm
    White balanceAutomatic
    Operating temperature<70°
    Power consumption0.25w
    Model NoHCA-C62
    Intenface typeBNC
    Cable lengthDefault
    LensEFL:3mm
    F.ON:2.2
    Distortion: <-1.0%
    Element:4E+IR
    Angle:D=95° H=83° V=55°
    Chip TypeCOMS
    StandardPAL/NTSC(Default PAL)

    Product advantages and application scenarios:


    1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors.

    2, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.

    Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.

    Customization: Huachuang Finished Product List.xls

    • Brand Name: HCVsight
    • Model Number: HCA-C62
    • Place of Origin: ShenZhen,China
    • Minimum Order Quantity: negotiable
    • Price: negotiable
    • Packaging Details: Anti-static bag in Paper box(110mmx93mm41mm)
    • Delivery Time: 2-3weeks
    • Payment Terms: T/T
    • Supply Ability: 100000/pieces/mouth
    • Dimensions: 6mmX6mm
    • Sensor Size: 1/4''
    • Resolution: 2MP
    • Sensor Type: CMOS

    Our product customization services allow you to tailor the HCA-C62 Camera to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.

    Other products

    Support and Services:

    The Camera Module Lens product comes with a range of technical support and services, including:

    • Expert technical assistance in selecting the right lens for your application
    • Customized lens design and development services to meet specific customer requirements
    • Thorough testing and evaluation of all lenses to ensure quality and reliability
    • Comprehensive documentation and training resources for customers to facilitate integration and use of the camera module lens
    • Ongoing maintenance and repair services, including replacement of damaged or faulty lenses.
